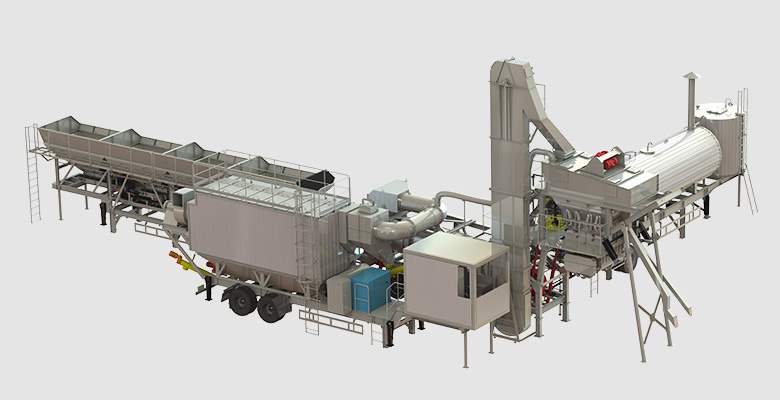

SMAP Super Mobile Batch Mix Asphalt Plant

SMAP Mobile asphalt mixing plant is a kind of equipment used for road construction or maintenance, which can mix asphalt with aggregates(such as gravel, sand, etc.) in accordance with a certain proportion to produce asphalt concrete for laying roads.

Model: SMAP-40E ~ SMAP-90E

Product Capacity: 30t/h ~ 80t/h

Highlights: Modular structure, Wide Application, Easy of Operation, Best-Selling

Send Email

Chat Now

Call us Now

+86 18224529750

Product Parameters

SMAP Batch Mix Asphalt Plant

Model No.	SMAP-40E	SMAP-60E	SMAP-90E
Drying capacity	30t/h-40t/h	50t/h-60t/h	80t/h-90t/h
Capacity	30t/h-40t/h	50t/h-60t/h	80t/h-90t/h
Mixing Type	Horizontal Double Shaft Paddle Type Spiral Mixing Device
Mixer Capacity	500kg	800kg	1000kg
Fuel	Diesel, Heavy Oil, LNG, coal
Dust collector	Gravity Dust Collector + Bag Filter

About above technical parameters, Sinoroader reseves the right to change configurations and parameters before order without notifying users, due to the continuous innovation and improvement of technology and production process.

COMPANY ADVANTAGES

SMAP Batch Mix Asphalt Plant

PERSONALIZED SERVICE

Personalized & customized function of equipment, manufactured by professional artisan team with quality assurance.

INTERNATIONAL BRAND COMPONENTS & PARTS

Adopting international famous brand components & parts make the production stable and efficient.

MODULAR DESIGN

Full functional plant consists of separate modules, each of which equips with travelling chassis system.

EASY RELOCATION

Easy to relocate being towed by tractor after been folded, just 4 tractors can handle it all.

RAPID PRODUCTION

Connecting electric circuits and pipelines after relocation, commissioning and production can be started, the grading ratio can reach a higher standard.

HIGH ADAPTABILITY OF SITE & COST SAVING

Adopting ground-foundation-free design, the plant equips with retractable landing gear and adjustable steel structure foundation, reducing the costs of foundation making due to relocation.

product components

SMAP Batch Mix Asphalt Plant

Cold Feed System

Batch Mixing Tower:Screener, Hot Bin, Weighing, Batch Mixer

Chimney pipe

Hot aggregate elevator

Bitumen Supply system

Baghouse Dust Collection System

Central Control System

Hydraulic support

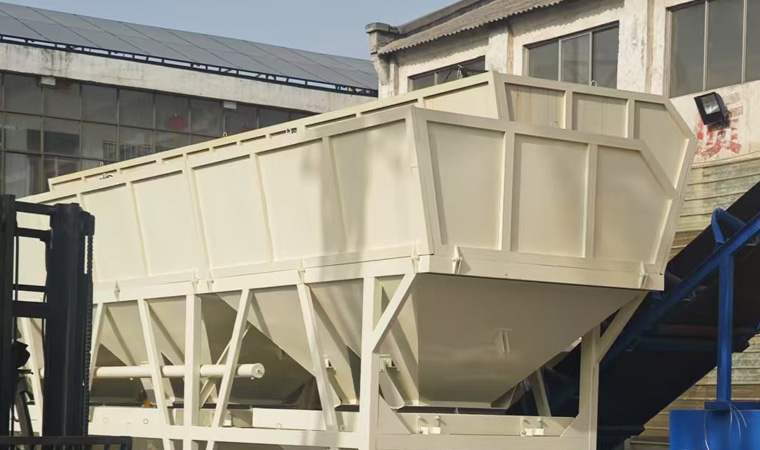

1.Cold Feed System

The aggregate feeding hoppers and aggregate collecting belt are mounted on one mobile chassis.

The belt feeder that adopts the frequency speed regulator has long speed range, so it runs smoothly and efficiently.

Each discharging gate of hopper has an alarm for the warning of no aggregate in the bins.

There is a vibrator on the wall of bin to avoid blockage.

On the top of each hopper there is a screen to prevent the entry of bigger aggregate, ensuring the reliability of system.

Get Started

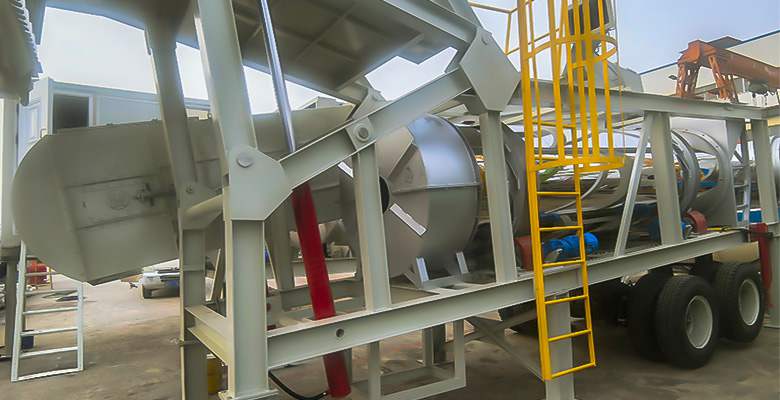

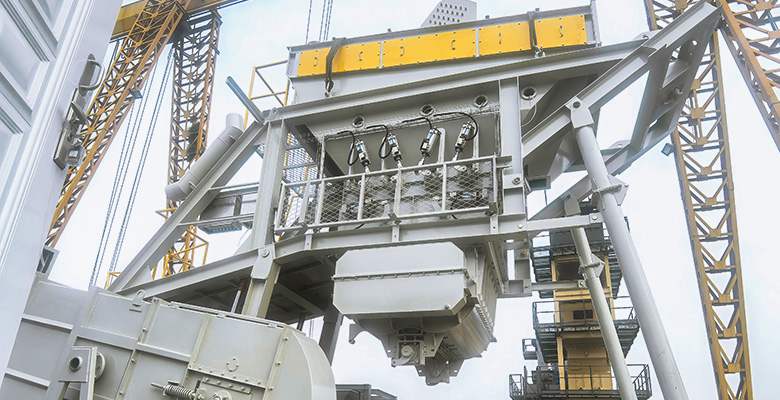

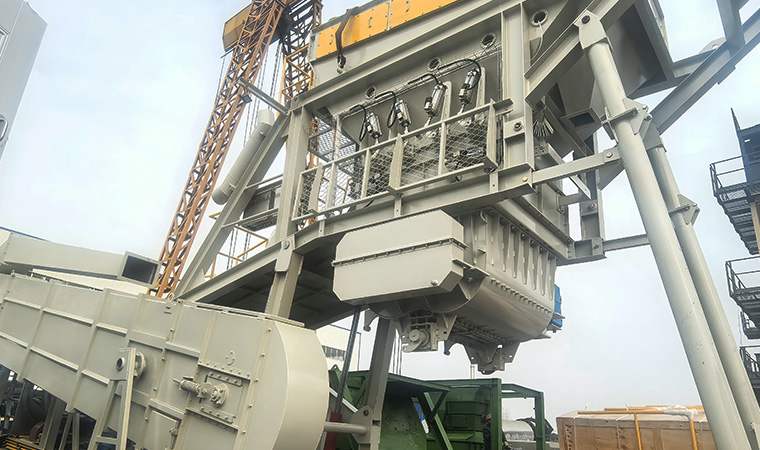

2.Batch Mixing Tower

The mixing tower includes the vibration screen, hot aggregate storage bin and weighing hopper, asphalt mixer, bitumen weighing, filler weighing(option). All these parts are mounted on one trailer chassis. Easy for installation and transferring to other worksite after you finished project in one place.

The reducer for the mixer can be domestic brand or imported Germany NORD Brand.

The weighing sensors can be Mettler Toledo, USA brand or Chinese Taiwan brand: Airtac.

Get Started

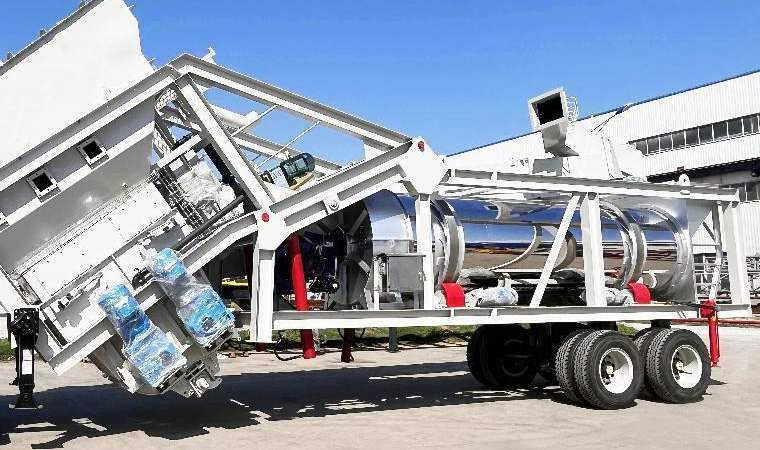

3.Drying & Heating System

The mobile drum dryer adopts 4 frictional wheels, which is drived by four synchronous motors. It runs smoothly with low noise.

The temperature of the dried aggregate directly influences the temperature of the final product; Drying efficiency directly influences the consumption of the fuel, thereby the reasonable structure is very important. We fully absorbed the abroad advanced technology of mixing and got satisfying effect and realized the anticipated object.

About the oil burner, we have international brand and domestic brand for you to choose.

Get Started

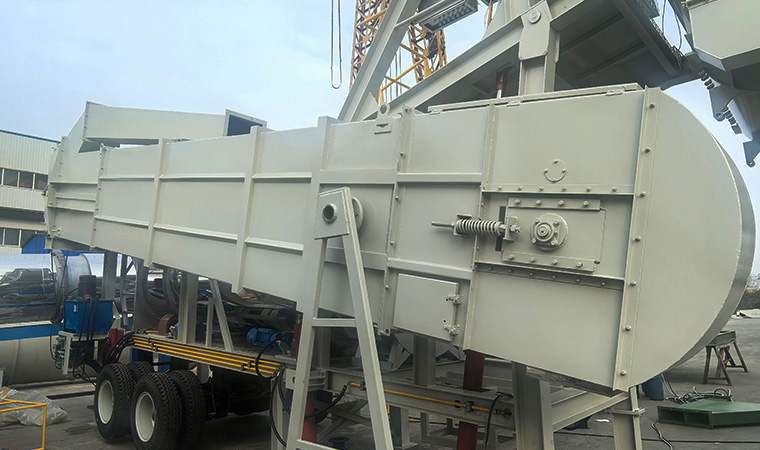

4.Hot aggregate elevator

The dedicated elevator for asphalt mixing station provides strong support for the efficient operation of asphalt mixing station with its excellent performance, stable operation, complete safety protection measures and convenient maintenance.

Get Started

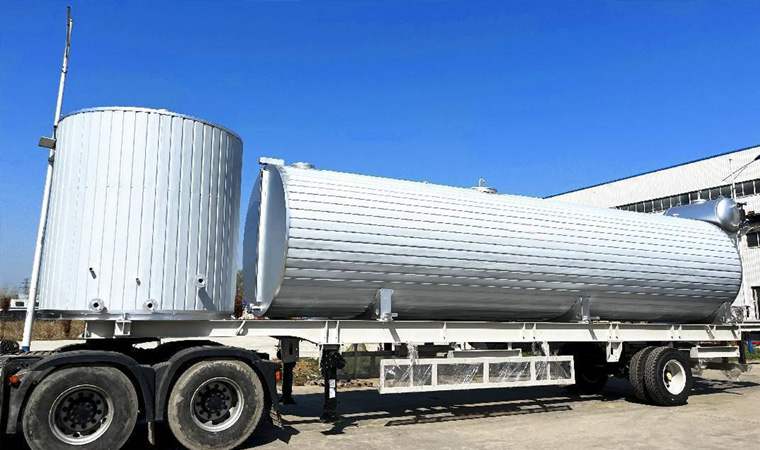

5.Bitumen Supply system

To provide and deliver quantitative bitumen. It consists of bitumen pipe manifold, high viscosity insulated bitumen pump (depend on user’s demand), three-way control valve, bitumen metering hopper, bitumen spray nozzle, insulated sleeve pipe, etc.

Get Started

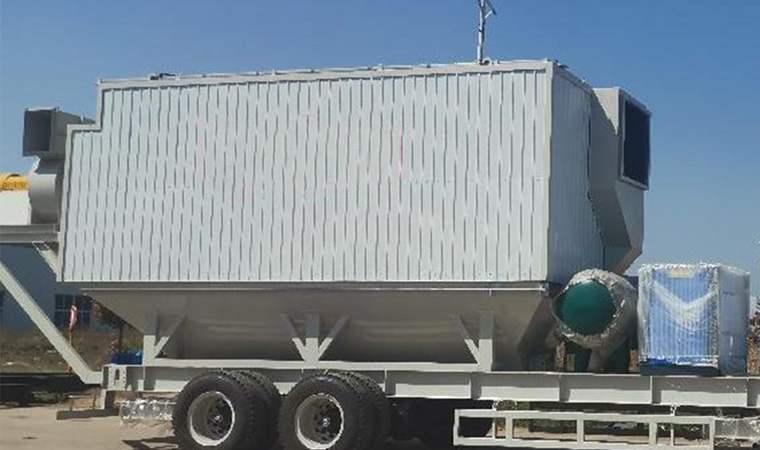

6.Baghouse Dust Collection System

This dust collecting system is equipped with primary gravity dust collector and secondary bag house dust collector. All the collected aggregate grain is conveyed to the hot aggregate elevator for recycling use.

The secondary dust collecting system bag house dust collector. The bags adopt high temperature resistance material. It can work under rated high temperature，it has long life-span and good ventilation. The efficiency of dust collector can reach up to more than 99%，which fully meet environment protection standard.

The collected filler can be recycling used. Of course, if you do not need, it can be discharged by screw conveyor.

Get Started

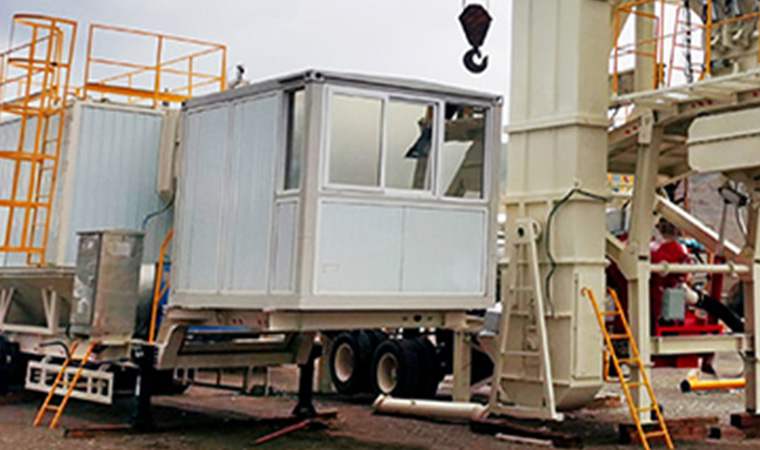

7.Central Control System

The electric control system adopts advanced electric components (including products of Siemens, Schneider or Omron) which ensures the reliability of long performance. According to the order of start, the driving control wire sets the protecting lines, thus guarantees the reliability and safety of operation. The motor of the belt feeder in the batching process is controlled by frequency speed regulator, so the regulation precision is improved.

The control room and the diesel tank are mounted in the same chassis to make the full use of the chassis layout.

Get Started

8.Hydraulic support

The outriggers can be quickly folded up during transportation, saving time and effort and facilitating transportation;

When building a site, the building can be quickly erected and put into production quickly, improving efficiency.

Get Started

product cases.

SMAP Batch Mix Asphalt Plant Related Cases

Sinoroader is located in Xuchang, a national historical and cultural city. It is a road construction equipment manufacturer integrating R&D, production, sales, technical support, sea and land transportation and after-sales service. We export at least 30 sets of asphalt mix plants and road construction equipments every year, now our equipment has spread to more than 60 countries around the world

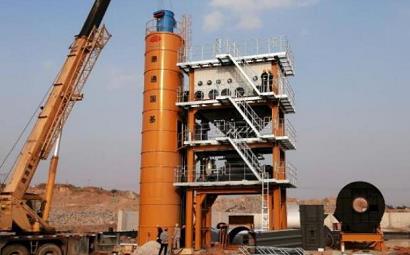

Sinoroader first HMA-B2000 asphalt mixing plant has been set in RWANDA

country:RWANDA

Product: ASPHALT MIXING PLANT

Chat Now

160t/h (RAP) Recycling Asphalt Plant in Yuzhou Henan

country:Xuchang

Product: (RAP) Recycling Asphalt Plant

Chat Now

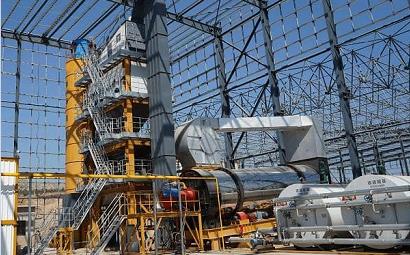

HMA-B3000 batch asphalt mix plant in Xuchang
